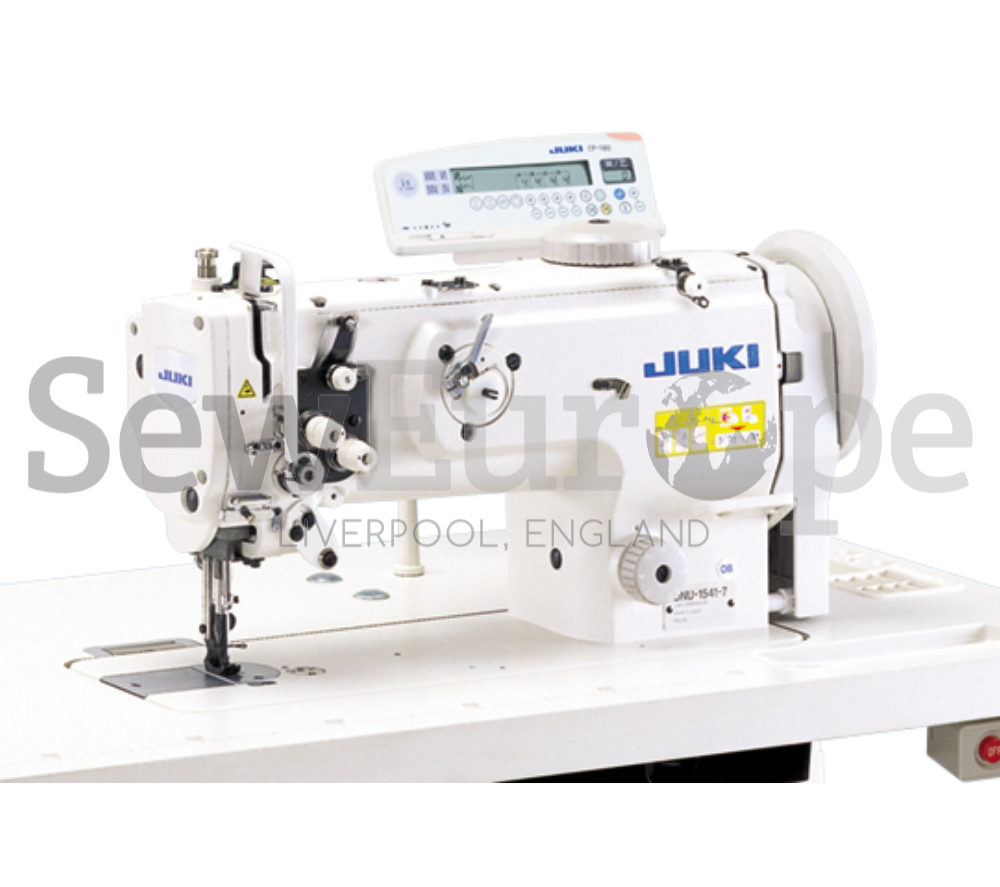

Juki DNU1541

1 Needle, Union feed and consistent seam quality, the machine responds outstandingly to the sewing of heavy materials.

With its reliable feed and consistent seam quality, the machine responds outstandingly to the sewing of heavy materials.

With its larger needle bar stroke, higher presser foot lift, and newly adopted double -tension mechanism, the machine offers excellent sewing capabilities and responsiveness.

Excellent Sewing Capabilities and Feed Performance

The alternating vertical movement of the walking foot and presser foot are as large as 6.5mm

In addition, the ration between alternation vertical movements of the walking foot and presser foot remains unchanged even when the material thickness changes. Thanks to this features and the adoption of a new method of rectangular feed that prevents needle from fraying, the machine sewing multi-layered parts of a material with consistent stitching pitch while preventing stitch gathering.

High Speed Performance Increases Productivity

The machine delivers increased productivity at sewing speeds as high as 2,500 sti/min.

The Vertical Stroke of the Walking Foot and Presser Foot Can Be Easily Set and Changed.

The vertical stoke of the presser foot and walking foot ( amount of alternating vertical movement) can be easily changed with the large dial mounted on the top of the machine head. The sewing speed is automatically regulated based on the vertical stoke setting. This ensures ideal sewing conditions at all times.

A Helpful Automatic Reverse Feed Function is Provided as Standard

With just light press on the one touch type reverse feed button, reverse feed stitching is actuated. Furthermore, if a suspended ruler is attached on the machine or a 3 dimensional sewing product is sewn. The button can be shifted upwards to prevent interruption.

Excellent Operability And Maintainability

The stich length can be easily selected by the stitch dial.

The machine’s enhanced operability features include a clear view of the area around the needle, placement of the bobbin thread winder on the front face of the machine arm, and a large handwheel (φ160mm)

A knee lifter mechanism is built in the bed. This reduces the pressure required to operate the knee lifter and facilitates setup.

The machine’s full open type top cover design makes adjusting work easier.

The machine’s full open type top cover design makes adjusting works easier.

The machine comes with a lubricating mechanism that uses a centralized oil wick. This substantially reduced that time and trouble required for oiling the machine (Hook: automatic)

A walking foot mechanism is built into the machine arm to prevent oil from scattering.

The Area Around The Needle Entry is Designed To Be Easily Observed

since the needle thread tension release solenoid is fitted on the rear face of the machine head, the area around the needle entry and one touch type reverse feed button is easily viewable. This substantially contributes to improved operability.

Updated 03/06/24
